SMC電磁閥SQ1000/2000：
| 系列 | 流量特性 4/2→5/3（A/B→R1/R2） C［dm3/（s?bar）］ |
流量特性 4/2→5/3（A/B→R1/R2） b |
流量特性 4/2→5/3（A/B→R1/R2） Cv |
氣缸驅動 尺寸 |
消耗功率（W） |
|---|---|---|---|---|---|
| SQ1000 | 0.8 | 0.20 | 0.19 | φ32 |
0.4W（標準） 0.95W（高壓型） |
| SQ2000 | 3.1 | 0.18 | 0.71 | φ63 |
0.4W（標準） 0.95W（高壓型） |
Power consumption 0.4W (Standard) ,
0.95W High (pressure)
Compared to existing model 60% DOWN

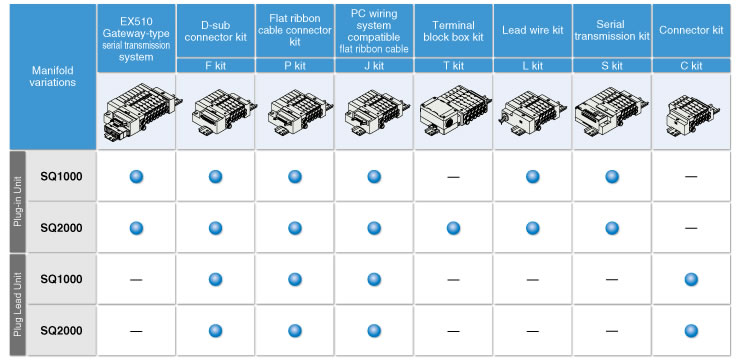

Easy to add or decrease the number of valve stations.
The use of cassette style valves and manifolds makes it easy
to increase or decrease the number of stations on a DIN rail.
The plug-in type includes two extra valve station connectors.
This design makes rewiring unnecessary during manifold
expansion.
Easy valve maintenance
Mountable with one screw.

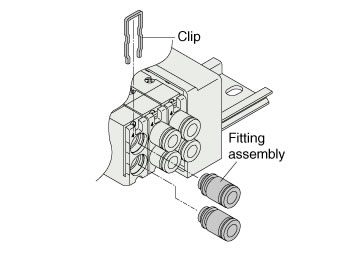

One-touch fittings can be replaced without removing valves.

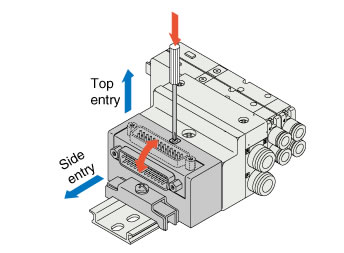

The connector entry direction can be changed from the top to the side by simply pressing the manual release button. It is not necessary to use the manual release button when switching from the side to the top.
Eliminates trouble with back pressure when
driving a single acting cylinder or when using
an exhaust center type valve, etc.
