SMC氣缸CJ2/CDJ2氣缸：
| 型號 | 系列 | 動作方式 | 缸筒內徑 |
|---|---|---|---|
| 標準型 | CJ2-Z | 單桿雙作用 | 6，10，16 |
| 標準型 | CJ2-Z | 單作用（伸?縮） | 6，10，16 |
| 標準型 | CJ2W-Z | 雙桿雙作用 | 6，10，16 |
| 桿不回轉型 | CJ2K-Z | 單桿雙作用 | 10，16 |
| 桿不回轉型 | CJ2K-Z | 單作用（伸?縮） | 10，16 |
|
速度控制閥 內置型 |
CJ2Z-Z | 單桿雙作用 | 10，16 |
|
速度控制閥 內置型 |
CJ2ZW-Z | 雙桿雙作用 | 10，16 |
| 直接安裝型 | CJ2RA-Z | 單桿雙作用 | 10，16 |
| 直接安裝型 | CJ2RA-Z | 單作用（伸?縮） | 10，16 |
|
桿不回轉型 直接安裝型 |
CJ2RK-Z | 單桿雙作用 | 10，16 |
|
桿不回轉型 直接安裝型 |
CJ2RK-Z | 單作用（伸?縮） | 10，16 |
| 端鎖氣缸 | CBJ2 | 單桿雙作用 | 16 |
4 types
7 types(For ?6, 3 types 6 types)
Improved amount of mounting freedom
Head cover with boss is added.
Improved piping flexibility

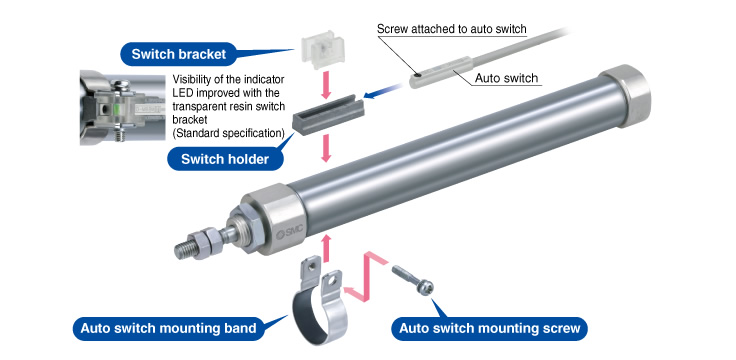

Fine adjustment of the auto switch set position can be performed by loosening the auto switch attached screw. Operability improved compared with the conventional auto switch set position adjustment, where the complete switch mounting band requires loosening.
Transparent switch bracket improves visibility of indicator LED.

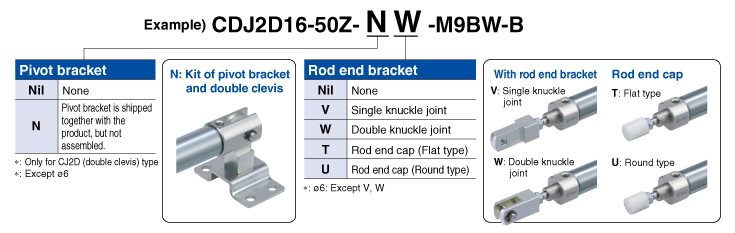

Not necessary to order a bracket for the applicable cylinder separately
Note) Mounting bracket is shipped together with the product, but not assembled.
?: The air cylinder with end lock has the same shape as the current product.
?: For details about the clean series, refer to the WEB catalog.
?: Air cushion is only available for ?10 and ?16.
