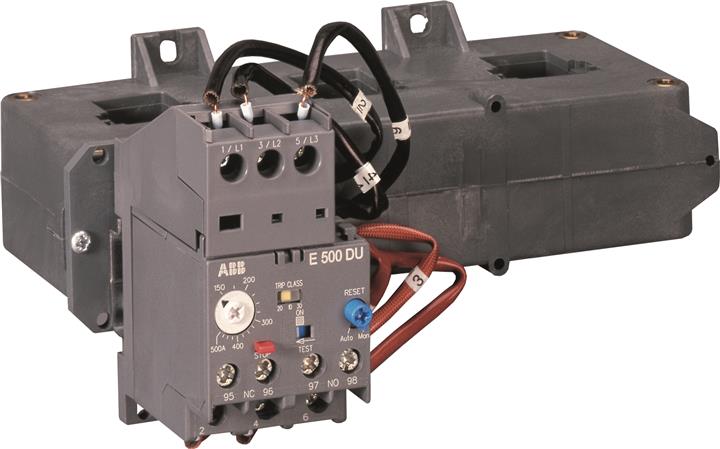

ABB E500DU-500電子式過載繼電器1SAX711001R1101：
| 產品型號: | E500DU-500 |
| 產品ID: | 1SAX711001R1101 |
| EAN: | 4013614395437 |
| 目錄說明: | E500DU-500 Electronic Overload Relay |
| 詳細描述: | The E500DU-500 is an self-supplied electronic overload relay, which means no extra external supply is needed. It offers reliable and fast protection for motors in the event of overload or phase failure. Easy to use like a thermal overload relay and compatible with standard motor applications, the electronic overload relay is convincing, above all, due to its wide setting range, high accuracy, high operational temperature range and the possibility to select a trip class (10E, 20E, 30E). Further features are the temperature compensation, trip contact (NC), signal contact (NO), automatic- or manual reset selectable, trip-free mechanism, STOP- and Test function and a trip indication. The overload relays are connected with a mounting kit to the contactors. |
| 最小起訂量: | 1 piece |
| 海關關稅號: | 85364900 |
| 更換產品ID（新）: |
1SAX721001R1101 |
| 產品凈寬: | 192 mm |
| 產品凈高: | 120 mm |
| 產品凈深: | 152.1 mm |
| 產品凈重: | 1.17 kg |
| 數據手冊，技術資料: |
1SBC100173C0201 |
| 數據手冊，技術資料（第2部分）: |
1SAX100502F0002 1SAX100508F0001 |
| 說明書和手冊: |
2CDC107022M5502 |
| 尺寸圖: |
1SAX711001F1101 |
| 設置范圍: | 150 ... 500 A |
| 額定工作電壓: | Auxiliary Circuit 600 V AC/DC Main Circuit 1000 V AC |
| 額定工作電流 (Ie): | 500 A |
| 額定工作電流 AC-3 (Ie): | 500 A |
| 額定頻率 (f): | Auxiliary Circuit 50 Hz Auxiliary Circuit 60 Hz Auxiliary Circuit DC Main Circuit 50 Hz Main Circuit 60 Hz |
| 額定沖擊耐受電壓 (Uimp): | Auxiliary Circuit 6 kV Main Circuit 8 kV |
| 額定絕緣電壓 (Ui): | 1000 V |
| 極數: | 3 |
| 輔助觸點NC數量: | 1 |
| 輔助觸點NO數量: | 1 |
| 保護極數: | 3 |
| 額定發熱電流（自由空氣） (Ith): | Auxiliary Circuit NC 6 A Auxiliary Circuit NO 6 A |
| 額定工作電流 AC-15 (Ie): | (240 V) NC 3 A (240 V) NO 3 A (400 V) NC 1.1 A (400 V) NO 1.1 A (500 V) NC 0.7 A (500 V) NO 0.7 A |
| 額定工作電流 DC-13 (Ie): | (125 V) NC 0.55 A (125 V) NO 0.4 A (24 V) NC 1.5 A (24 V) NO 1.5 A (250 V) NC 0.27 A (250 V) NO 0.2 A (60 V) NC 0.55 A (60 V) NO 0.5 A |
| 防護等級: | Housing IP20 Main Circuit Terminals IP00 |
| 污染等級: | 3 |
| 輔助電路連接容量: | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm2 Flexible with Insulated Ferrule 1/2x 0.75 ... 2.5 mm2 Flexible 1/2x 0.75 ... 2.5 mm2 Rigid 1/2x 1 ... 4 mm2 |
| 擰緊力矩: | Auxiliary Circuit 0.8 ... 1.2 N·m |
| 剝線長度: | Auxiliary Circuit 9 mm |
| 推薦的螺絲刀: | Auxiliary Circuit Pozidriv 2 |
| 安裝位置: | Position 1 to 6 |
| 適用于: | AF400 AF460 |
| 標準: | IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 60947-5-1 UL 60947-1 UL 60947-4-1 |
| 周圍環境溫度: | Operation -25 ... +70 °C Operation Compensated -25 ... +70 °C Storage -25 ... +70 °C |
| 周圍環境溫度補償: | Yes |
| 允許的最高工作海拔: | 2000 m |
| RoHS狀態: | Following EU Directive 2002/95/EC August 18, 2005 and amendment |
| 最高工作電壓UL/CSA: | Main Circuit 600 V AC |
| 額定電流UL/CSA: | 500 A |
| 輔助電路連接容量 UL/CSA: | Flexible 1/2x 16-10 AWG Stranded 1/2x 16-10 AWG |
| 擰緊力矩UL/CSA: | Auxiliary Circuit 7 in·lb |
| ABS認證: |
1SAA964000-0101 |
| CB認證: |
1SAA964006-2001 |
| CCC認證: |
1SAA964003-3802 |
| cUL 認證: |
cUL_E48139 |
| 符合性聲明 - CE: |
1SAD938508-0053 |
| 環境信息: |
1SAA964003-2401 |
| 說明書和手冊: |
2CDC107022M5502 |
| RMRS認證: |
1SAA964000-0702 |
| RoHS信息: |
1SAA964002-4401 |
| UL認證: |
UL_E48139 |
| 1級包裝單元: | 1 piece |
| 1級包裝寬度: | 215 mm |
| 1級包裝高度: | 148 mm |
| 1級包裝長度: | 205 mm |
| 1級包裝 總重: | 1.43 kg |
| 1級包裝 EAN: | 4013614395437 |
| 對象分類代碼: | F |
| ETIM 4: | EC001080 - Electronic overload relay |
| ETIM 5: | EC001080 - Electronic overload relay |
| ETIM 6: | EC001080 - Electronic overload relay |
| ETIM 7: | EC001080 - Electronic overload relay |
| e級: | 7.0 27371502 |
| UNSPSC: | 39121521 |
