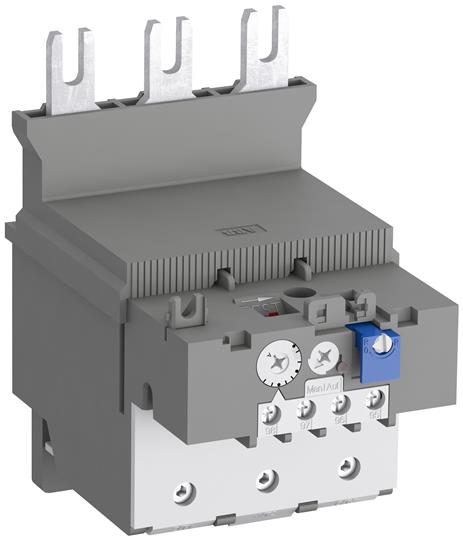

ABB TF140DU-90熱過載繼電器1SAZ431201R1001：
| 產品型號: | TF140DU-90 |
| 產品ID: | 1SAZ431201R1001 |
| EAN: | 4013614446818 |
| 目錄說明: | TF140DU-90 Thermal Overload Relay |
| 詳細描述: | The TF140DU-90 thermal overload relay is an economic electromechanical protection device for the main circuit. It offers reliable and fast protection for motors in the event of overload or phase failure. The device has trip class 10A. Further features are the temperature compensation, trip contact (NC), signal contact (NO), automatic- or manual reset selectable, trip-free mechanism, STOP- and Test function and a trip indication. The overload relays are connected directly to the block contactors. |
| 最小起訂量: | 1 piece |
| 海關關稅號: | 85364900 |
| 產品凈寬: | 89 mm |
| 產品凈高: | 140 mm |
| 產品凈深: | 126 mm |
| 產品凈重: | 0.82 kg |
| 數據手冊，技術資料: |
2CDC106061D0201 |
| 數據手冊，技術資料（第2部分）: |
1SAZ400503F0001 |
| 說明書和手冊: |
2CDC106050M6802 |
| 尺寸圖: |
1SAZ400404F0001 |
| 設置范圍: | 66 ... 90 A |
| 額定工作電壓: | Auxiliary Circuit 440 V DC Auxiliary Circuit 500 V AC Main Circuit 690 V AC |
| 額定工作電流 (Ie): | 90 A |
| 額定工作電流 AC-3 (Ie): | 90 A |
| 額定頻率 (f): | Auxiliary Circuit 50 Hz Auxiliary Circuit 60 Hz Auxiliary Circuit DC Main Circuit 60 Hz Main Circuit 50 Hz Main Circuit DC |
| 額定沖擊耐受電壓 (Uimp): | Auxiliary Circuit 6 kV Main Circuit 8 kV |
| 額定絕緣電壓 (Ui): | 690 V |
| 極數: | 3 |
| 輔助觸點NC數量: | 1 |
| 輔助觸點NO數量: | 1 |
| 保護極數: | 3 |
| 額定發熱電流（自由空氣） (Ith): | Auxiliary Circuit NC 10 A Auxiliary Circuit NO 6 A |
| 額定工作電流 AC-15 (Ie): | (120 V) NC 3 A (120 V) NO 1.5 A (240 V) NC 3 A (240 V) NO 1.5 A (400 V) NC 1.9 A (400 V) NO 1 A (440 V) NC 1 A (440 V) NO 1 A (500 V) NC 1 A (500 V) NO 1 A |
| 額定工作電流 DC-13 (Ie): | (125 V) NC 0.25 A (125 V) NO 0.25 A (24 V) NC 1.25 A (24 V) NO 1.25 A (250 V) NC 0.12 A (250 V) NO 0.04 A (60 V) NC 0.25 A (60 V) NO 0.25 A |
| 防護等級: | Housing IP20 Main Circuit Terminals IP10 |
| 污染等級: | 3 |
| 輔助電路連接容量: | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm2 Flexible 1/2x 0.75 ... 2.5 mm2 Rigid 1/2x 0.75 ... 4 mm2 |
| 主電路連接容量: | Flexible with Ferrule 1/2x 16 ... 70 mm2 Flexible with Insulated Ferrule 1/2x 16 ... 70 mm2 Flexible 1/2x 16 ... 70 mm2 Rigid 1/2x 16 ... 70 mm2 |
| 擰緊力矩: | Auxiliary Circuit 0.8 ... 1.2 N·m Main Circuit 8 ... 10 N·m |
| 剝線長度: | Auxiliary Circuit 9 mm Main Circuit 25 mm |
| 推薦的螺絲刀: | Auxiliary Circuit Pozidriv 2 Main Circuit Hexagon 4 |
| 安裝位置: | Position 1 to 5 |
| 功率損耗: | at Rated Operating Conditions per Pole 2.4 ... 4.4 W |
| 適用于: | AF116 AF140 |
| 標準: | IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 60947-5-1 UL 60947-1 UL 60947-4-1 |
| 周?chē)h(huán)境溫度: | Operation -25 ... +55 °C Operation Compensated -25 ... +55 °C Storage -40 ... +70 °C |
| 周?chē)h(huán)境溫度補償: | Yes |
| 允許的最高工作海拔: | 2000 m |
| 抗機械沖擊符合IEC 60068-2-27標準: | 11 ms Pulse 12g |
| RoHS狀態: | Following EU Directive 2011/65/EU |
| 最高工作電壓UL/CSA: | Main Circuit 600 V AC |
| 額定電流UL/CSA: | 90 A |
| 接觸等級UL/CSA: | (NC:) B600 (NO:) C300 |
| 主電路連接容量 UL/CSA: | Flexible 1/2x 6-2/0 AWG Stranded 1/2x 6-2/0 AWG |
| 輔助電路連接容量 UL/CSA: | Flexible 1/2x 18-14 AWG Stranded 1/2x 18-14 AWG |
| 擰緊力矩UL/CSA: | Auxiliary Circuit 12 in·lb |
| ABS認證: |
1SAA941004-0101 |
| BV認證: |
1SAA941003-0201 |
| CB認證: |
1SAA941012-2001 |
| CCC認證: |
1SAA941009-3802 |
| cUL 認證: |
cUL_E48139 |
| 符合性聲明 - CE: |
1SAD938503-0185 |
| DNV GL Certificate: |
1SAA941004-0301 |
| EAC認證: |
1SAA941002-2702 |
| GOST認證: |
1SAA941001-2701 |
| 說明書和手冊: |
2CDC106050M6802 |
| LR認證: |
1SAA941004-0501 |
| RINA認證: |
RINA_ELE098115XG |
| RMRS認證: |
1SAA941002-0701 |
| RoHS信息: |
1SAD938503-0185 |
| UL認證: |
UL_E48139 |
| 1級包裝單元: | 1 piece |
| 1級包裝寬度: | 165 mm |
| 1級包裝高度: | 133 mm |
| 1級包裝長度: | 151 mm |
| 1級包裝 總重: | 0.945 kg |
| 1級包裝 EAN: | 4013614446818 |
| 2級包裝單元: | 4 piece |
| 2級包裝寬度: | 280 mm |
| 2級包裝高度: | 210 mm |
| 2級包裝長度: | 395 mm |
| 2級包裝 總重: | 8.786 kg |
| 2級包裝 EAN: | 4013614494352 |
| 對象分類代碼: | F |
| 訂單編號E: | 3210241 |
| ETIM 4: | EC000106 - Thermal overload relay |
| ETIM 5: | EC000106 - Thermal overload relay |
| ETIM 6: | EC000106 - Thermal overload relay |
| ETIM 7: | EC000106 - Thermal overload relay |
| e級: | 7.0 27371501 |
| UNSPSC: | 39121521 |
