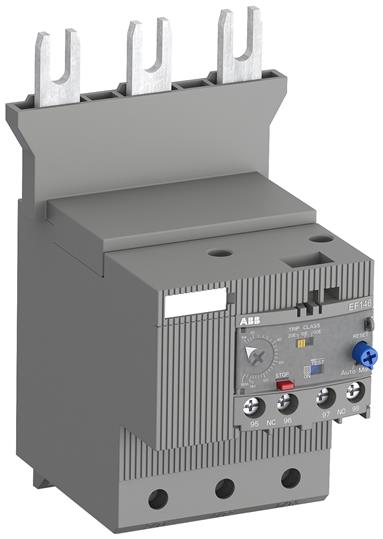

ABB EF146-150電子式過載繼電器1SAX351001R1101：
| 產品型號: | EF146-150 |
| 產品ID: | 1SAX351001R1101 |
| EAN: | 4013614442230 |
| 目錄說明: | EF146-150 Electronic Overload Relay |
| 詳細描述: | The EF146 is an self-supplied electronic overload relay, which means no extra external supply is needed. It offers reliable and fast protection for motors in the event of overload or phase failure. Easy to use like a thermal overload relay and compatible with standard motor applications, the electronic overload relay is convincing, above all, due to its wide setting range, high accuracy, high operational temperature range and the possibility to select a trip class (10E, 20E, 30E). Further features are the temperature compensation, trip contact (NC), signal contact (NO), automatic- or manual reset selectable, trip-free mechanism, STOP- and Test function and a trip indication. The overload relays are connected directly to the contactors. Single mounting kits are available as accessory. The EF65, EF96 and EF146have ATEX and IECEx certification 1) 1) ATEX is valid for products produced from week 42, 2014. IECEx is valid for products produced from week 15, 2017. |
| 最小起訂量: | 1 piece |
| 海關關稅號: | 85364900 |
| 產品凈寬: | 89.05 mm |
| 產品凈高: | 150.4 mm |
| 產品凈深: | 105.2 mm |
| 產品凈重: | 0.879 kg |
| 數據手冊，技術資料: |
2CDC107041D0201 |
| 數據手冊，技術資料（第2部分）: |
1SAX100509F0001 1SAX100510F0001 |
| 說明書和手冊: |
2CDC107028M6803 |
| 說明書和手冊（第2部分）: |
2CDC107043M6801 |
| 尺寸圖: |
1SAX300407F0001 |
| 設置范圍: | 54 ... 150 A |
| 額定工作電壓: | Auxiliary Circuit 600 V AC/DC Main Circuit 1000 V AC |
| 額定工作電流 (Ie): | 150 A |
| 額定工作電流 AC-3 (Ie): | 150 A |
| 額定頻率 (f): | Auxiliary Circuit 50 Hz Auxiliary Circuit 60 Hz Auxiliary Circuit DC Main Circuit 50 Hz Main Circuit 60 Hz |
| 額定沖擊耐受電壓 (Uimp): | Auxiliary Circuit 6 kV Main Circuit 8 kV |
| 額定絕緣電壓 (Ui): | 1000 V |
| 極數: | 3 |
| 輔助觸點NC數量: | 1 |
| 輔助觸點NO數量: | 1 |
| 保護極數: | 3 |
| 額定發熱電流（自由空氣） (Ith): | Auxiliary Circuit NC 6 A Auxiliary Circuit NO 6 A |
| 額定工作電流 AC-15 (Ie): | (240 V) NC 3 A (240 V) NO 3 A (400 V) NC 1.1 A (400 V) NO 1.1 A (500 V) NC 0.75 A (500 V) NO 0.75 A |
| 額定工作電流 DC-13 (Ie): | (125 V) NC 0.55 A (125 V) NO 0.5 A (24 V) NC 1.5 A (24 V) NO 1.5 A (250 V) NC 0.27 A (250 V) NO 0.27 A (60 V) NC 0.55 A (60 V) NO 0.55 A |
| 防護等級: | Housing IP20 Main Circuit Terminals IP10 |
| 污染等級: | 3 |
| 輔助電路連接容量: | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm2 Flexible with Insulated Ferrule 1/2x 0.75 ... 2.5 mm2 Flexible 1/2x 0.75 ... 2.5 mm2 Rigid 1/2x 1 ... 4 mm2 |
| 主電路連接容量: | Flexible with Ferrule 1x 10 ... 70 mm2 Flexible with Ferrule 2x 10 ... 35 mm2 Flexible with Insulated Ferrule 1x 10 ... 70 mm2 Flexible with Insulated Ferrule 2x 2 ... 35 mm2 Flexible 1x 10 ... 70 mm2 Flexible 2x 10 ... 35 mm2 Rigid 1x 10 ... 95 mm2 Rigid 2x 10 ... 35 mm2 |
| 擰緊力矩: | Auxiliary Circuit 0.8 ... 1.2 N·m Main Circuit 10 N·m |
| 剝線長度: | Auxiliary Circuit 9 mm Main Circuit 20 mm |
| 推薦的螺絲刀: | Auxiliary Circuit Pozidriv 2 Main Circuit Hexagon 4 |
| 安裝位置: | Position 1 to 6 |
| 功率損耗: | at Rated Operating Conditions per Pole 0.204 ... 1.575 W |
| 適用于: | AF116 AF140 AF146 |
| 標準: | IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 60947-5-1 UL 60947-1 UL 60947-4-1 |
| 周圍環境溫度: | Operation -25 ... +70 °C Operation Compensated -25 ... +70 °C Storage -50 ... +85 °C |
| 周圍環境溫度補償: | Yes |
| 允許的最高工作海拔: | 2000 m |
| 抗機械沖擊符合IEC 60068-2-27標準: | 11 ms Pulse 25g |
| 耐振動符合IEC 60068-2-6標準: | 5g / 3 ... 150 Hz |
| RoHS狀態: | Following EU Directive 2011/65/EU |
| 最高工作電壓UL/CSA: | Main Circuit 600 V AC |
| 額定電流UL/CSA: | 150 A |
| 接觸等級UL/CSA: | (NC:) B600 (NC:) Q600 (NO:) B600 (NO:) Q600 |
| 主電路連接容量 UL/CSA: | Flexible 1x 6-00 AWG Flexible 2x 6-2 AWG Stranded 2x 6-2 AWG Stranded 1x 6-00 AWG |
| 輔助電路連接容量 UL/CSA: | Flexible 1/2x 18-10 AWG Stranded 1/2x 18-10 AWG |
| 擰緊力矩UL/CSA: | Auxiliary Circuit 7 ... 1 in·lb Main Circuit 70 in·lb |
| ABS認證: |
1SAA941002-0101 |
| ATEX認證: |
1SAA941004-3901 |
| BV認證: |
1SAA941002-0201 |
| CB認證: |
1SAA942013-2001 |
| CCC認證: |
1SAA942006-3803 |
| CCS認證: |
1SAA941001-0901 |
| cUL 認證: |
cUL_E48139 |
| 符合性聲明 - CE: |
1SAD938513-0180 1SAD938509-0180 |
| DNV認證: |
1SAA941003-0301 |
| DNV GL Certificate: |
1SAA941003-0302 |
| EAC認證: |
1SAA941003-2701 |
| GOST認證: |
1SAA941001-2701 |
| 說明書和手冊: |
2CDC107028M6803 |
| LR認證: |
1SAA941002-0501 |
| RINA認證: |
RINA_ELE376813CS |
| RMRS認證: |
1SAA941001-0701 |
| RoHS信息: |
1SAD938513-0180 |
| UL認證: |
UL_E48139 |
| 1級包裝單元: | 1 piece |
| 1級包裝寬度: | 160 mm |
| 1級包裝高度: | 107 mm |
| 1級包裝長度: | 97 mm |
| 1級包裝 總重: | 0.984 kg |
| 1級包裝 EAN: | 4013614442230 |
| 2級包裝單元: | 20 piece |
| 2級包裝寬度: | 489 mm |
| 2級包裝高度: | 227 mm |
| 2級包裝長度: | 332 mm |
| 2級包裝 總重: | 20.243 kg |
| 2級包裝 EAN: | 4013614483394 |
| 對象分類代碼: | F |
| 訂單編號E: | 3210247 |
| ETIM 4: | EC001080 - Electronic overload relay |
| ETIM 5: | EC001080 - Electronic overload relay |
| ETIM 6: | EC001080 - Electronic overload relay |
| ETIM 7: | EC001080 - Electronic overload relay |
| e級: | 7.0 27371502 |
| UNSPSC: | 39121521 |
